Récepteur portable Visit 868 BE1450 Bellman

Portable Receiver Bellman Visit 868 BE1450

rating Read the review
Average rating: 5/5 - Number of reviews: 1

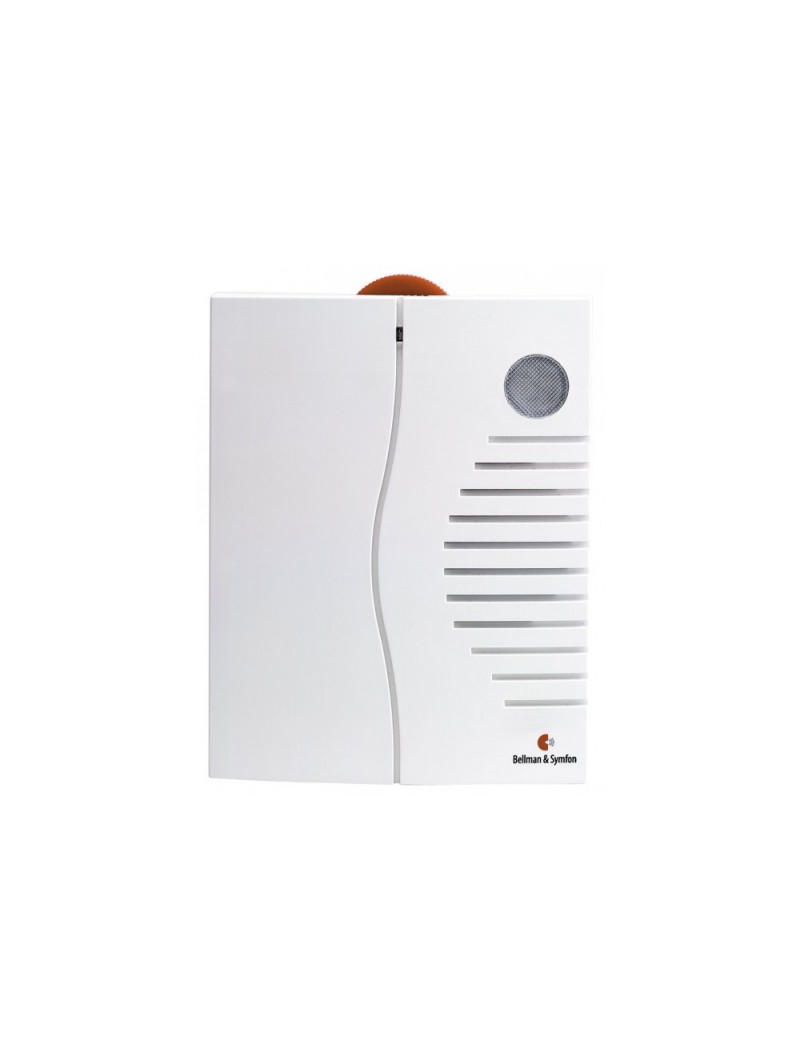

The BE1450 Visit Portable Receiver is a receiver within the Visit system for indoor use, which attracts the attention of the user using sound, light and also vibration if a BE1270 Bellman Bed-shaker (accessory) is connected.

It is activated via radio signals from any transmitter within the Visit System.

System indicators
The LED blinks once when the Portable Receiver is activated by a transmitter sending a radio signal to the Receiver.
The LEDs that indicate which transmitter has activated the Portable Receiver normally have the following meanings:
- Orange LED indicates a baby cry transmitter.
- Green LED  indicates a door transmitter.
- Yellow LED indicates a telephone transmitter.
- Red LED indicates a fire alarm

Bed shaker BE1270

The Portable Receiver sounds an alarm. The sound volume can be adjusted between 0 and 93 dBA maximum at 1 metre by using the volume control. The main frequency range is 500 – 1000 Hz. Refer to the user manual for the relevant Visit transmitter for more information about the types of sounds that can be emitted

When the Visit Portable Receiver is activated, the LEDs (3) blink with a bright light.

The Portable Receiver can power a BE1270 Bellman Bed-shaker connected to the socket. The bed shaker is placed under the pillow to wake the user up when the Portable Receiver is activated. Refer to the user manual for the relevant transmitter for more information about vibration patterns.

Technical information

Power supply Mains power: 7.5 V DC / 1000 mA with power supply unit BE9201 (Europe).
Battery power 4 x 1.5 V LR14 (C) alkaline.
Operating time: Alkaline: 2 – 3 years.
Power consumption: Active: 1000 mA Idle position: 0,1 mA

Radio function
Radio frequency: 868,3MHz
Number of Radio Keys: 64 Radio Keys as standard. Special software can be used to increase these to 256 Radio Keys in increments of 64 per software purchase. Contact the nearest supplier for further information.
Coverage: The normal coverage between a transmitter and receiver in the Bellman Visit 868 System is approximately 200 metres with a clear line of sight. Coverage is reduced if walls and large objects screen off the signals. Any thick walls constructed of reinforced concrete will greatly affect coverage. The system may also be affected by radio transmitters such as TV transmitters, computers, mobile phones, etc. This means that a unit may work perfectly in one part of the room but not at all in another.

Radio: Bellman Visit 868 system.

Output signals
Built-in sound signal: 93 dBA maximum at 1 metre with a main frequency range of 500 – 1000 Hz
Vibrator power: 2.0 – 4.0 VDC

Additional information
For indoor use only
Dimensions WxHxD: 130 x 165 x 36 mm
Weight: With battery: 590 g Without battery: 300 g
Color: White with red volume control

Accessories Bellman Bed-shaker BE1270

9989 Items

Data sheet

130 x 165 x 36 mm
with light flashes
with strong amplification
with vibrations
with bright icons
Bellman Visit 868
Bellman visit 868
2 years

Specific References



BE1450 fiche technique

Download (3.06M)

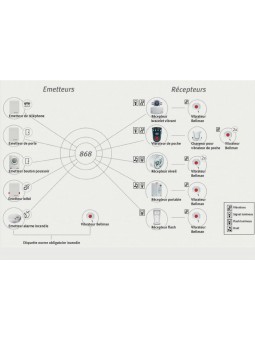

The Visit system includes a number of radio transmitters and receivers. Transmitters (doorbell detectors, telephone bell detector, smoke detector, etc.) detect different events in the vicinity and transmit a radio signal to the receivers. The receivers capture this signal and provide indications using light, sound and / or vibrations.

For exemple: When the doorbell rings, the transmitter signals the pager on your belt. The pager’s gentle vibrations will tell you that your guests have arrived; or, when the phone rings, the transmitter signals the Flash in your living room. The bright lights will show you that someone is trying to get a hold of you.

Bellman Visit 868,  flashs lumineux, vibrations alertes sonnettes pour sourds et malentendants
