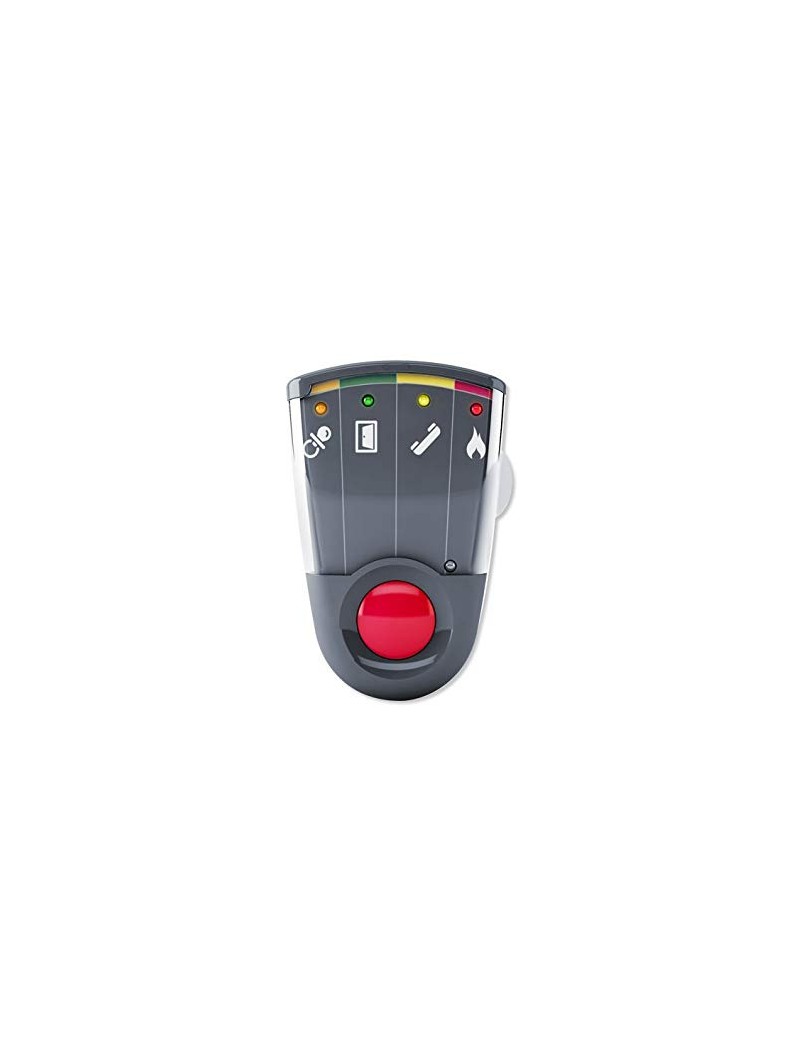

Pager Receiver Bellman Visit 868 BE1470
The BE1470 Visit Pager is a receiver within the Visit system for indoor use, which attracts the attention of the user using light and vibrations.
It is activated via radio signals from any transmitter within the Visit System.
When using rechargeable NiMh batteries, the Visit Pager can be connected to the BE1260 Visit Charger (separate product) to which two BE1270 Bed-shakers (accessory) can also be connected. This combination makes for better economy due to the rechargeable battery and better functionality due to the alarm call options with the Bed Shaker.
Indicators and Signals
It is generally the transmitters in the Visit System that determine how the receivers will indicate an alarm. See the description in the relevant transmitter user manual for further information.
System indicators The LEDs that indicate which transmitter has activated the Visit Pager normally have the following meanings.
- Orange LED indicates a baby cry transmitter.
- Green LED indicates a door transmitter.
- Yellow LED indicates a telephone transmitter.
- Red LED indicates a smoke alarm.
The built-in vibrator vibrates differently according to which transmitter has activated the Pager. Refer to the user manual for the relevant Visit transmitter for more information about vibration patterns.
When using rechargeable NiMh batteries, the Visit Pager can be connected to the BE1260 Visit Charger (separate product) to which two BE1270 Bellman Bed-shakers (accessory) can also be connected. These are placed under the pillow so that the user is woken up when the Pager is activated.
Mains power: Via Visit Charger, BE1260
Battery power: 1 x 1.5 V AAA alkaline or 1.2 V AAA NiMh rechargeable battery.
Alkaline: 2 – 3 weeks
NiMh: Approximately 1 week on one charge
Active: 220 mA
Idle position: 1 mA
Radio frequency: 868,3MHz
Number of Radio Keys: 64 Radio Keys as standard. Special software can be used to increase these to 256 Radio Keys in increments of 64 per software purchase. Contact the nearest supplier for further information.
The normal coverage between a transmitter and receiver in the Bellman Visit 868 System is approximately 200 metres with a clear line of sight. Coverage is reduced if walls and large objects screen off the signals. Any thick walls constructed of reinforced concrete will greatly affect coverage. The system may also be affected by radio transmitters such as TV transmitters, computers, mobile phones, etc. This means that a unit may work perfectly in one part of the room but not at all in another.
Radio: Bellman Visit 868 system.
Via analogue telephone network: 26 - 120 V RMS, 15 - 100 Hz.
Vibrator power: Built-in
For indoor use only
Dimensions W x H x D: 57 x 86 x 29 mm
Weight: With battery: 70 g Without battery: 55 g
Colour: Grey with red function button.
- 57 x 86 x 29 mm
- with vibrations
- with bright icons
- Bellman Visit 868
- Bellman visit 868
- 2 years

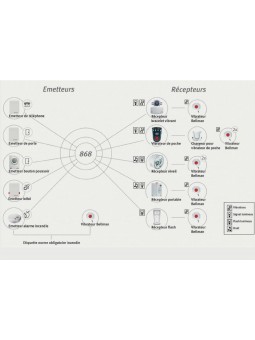

The Visit system includes a number of radio transmitters and receivers. Transmitters (doorbell detectors, telephone bell detector, smoke detector, etc.) detect different events in the vicinity and transmit a radio signal to the receivers. The receivers capture this signal and provide indications using light, sound and / or vibrations.
For exemple: When the doorbell rings, the transmitter signals the pager on your belt. The pager’s gentle vibrations will tell you that your guests have arrived; or, when the phone rings, the transmitter signals the Flash in your living room. The bright lights will show you that someone is trying to get a hold of you.
